Thursday, June 24, 2010

Dots Dots and More Dots

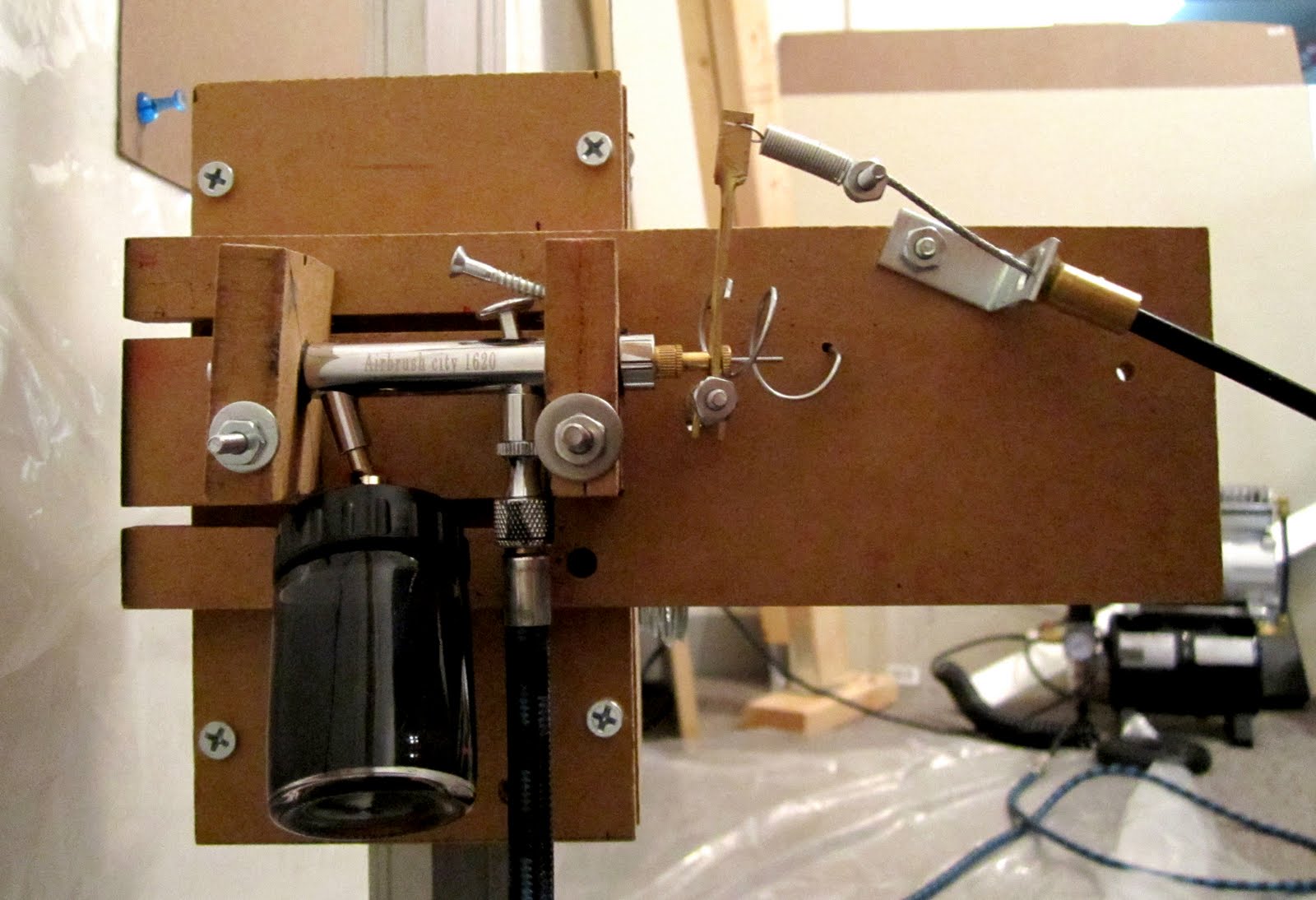

After reconfiguring the Z-Axis control we proceeded to make a drawing consisting of (roughly) 1700 dots. It took around 100 min for it to complete the entire drawing and we only ran into one clogging issue along the way, maintaining the dot size and spread fairly consistently.

Tuesday, June 22, 2010

Saturday, June 19, 2010


Demonstrating one of the many possible uses for the machine.

Friday, June 18, 2010


There have been about 4 or 5 moments when Nick and I have given each other a high five after doing something with this machine... and this was one of those. The first successful 2.5 axis vector plot. We had a couple more kinks to work out, but a $5 run to the hardware store and 15-min of work were all it took.
After the plane we moved on to a new drawing. We wanted to do a drawing that only the machine could do and not a skilled human with an airbrush. Well... maybe someone else could do it, but it would be difficult.

Thursday, June 3, 2010

Wednesday, June 2, 2010
